Quick Answer
The US-market Toyota GR86 is rated at 228 hp at 7,000 rpm and 184 lb-ft at 3,700 rpm in each of the 2022–2025 brochures. Those are published engine ratings. A wheel-dyno sheet reports a different measurement, so a smaller number on that sheet does not, by itself, reveal missing horsepower.
For a stock-specification question, start with Toyota’s exact-year table. For a claim about a tested car, start with its original run record.
This guide is for an enthusiast checking a US second-generation GR86 power claim. It helps decide whether the evidence supports the comparison, supplies only an attributed observation, or leaves a question unanswered. Readers choosing a car to buy, seeking a tuning-gain promise or diagnosing a weak engine need evidence beyond this guide’s scope. The first-generation Toyota 86, Scion FR-S, Subaru BRZ and later model years require their own sources.
| US model year | Grades listed in the brochure | Peak power: hp / 7,000 rpm | Peak torque: lb-ft / 3,700 rpm |
|---|---|---|---|
| 2022 | Base, Premium | 228 | 184 |
| 2023 | Base, Premium, 10th Anniversary Special Edition | 228 | 184 |
| 2024 | Base, Premium, TRUENO Edition | 228 | 184 |
| 2025 | Base, Premium, Hakone Edition | 228 | 184 |
Sources: Toyota’s US 2022, 2023, 2024 and 2025 GR86 brochures.

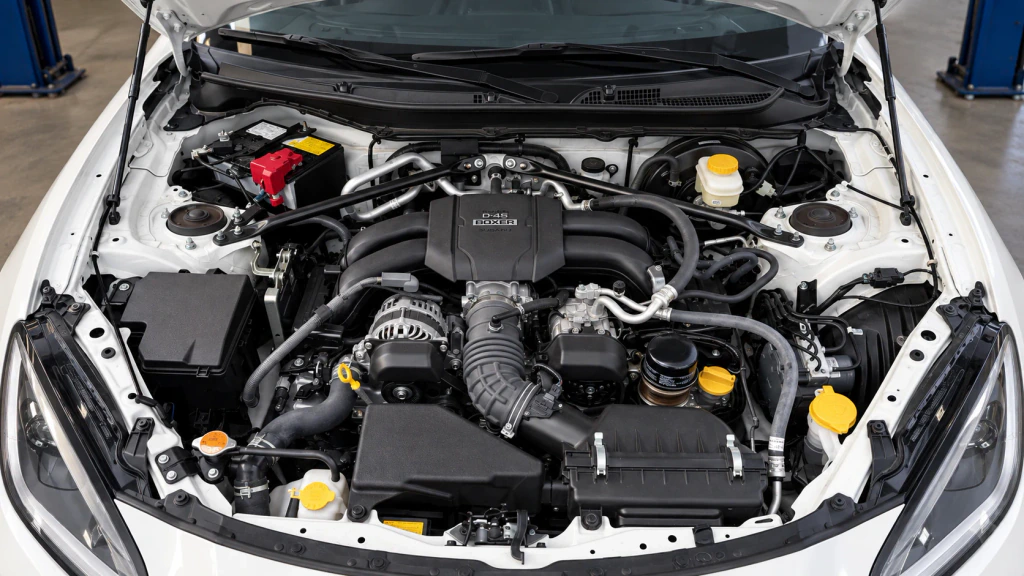

All four describe a naturally aspirated, 2,387 cc FA24 boxer-four. Their engine-rating rows cover the offered six-speed manual and six-speed automatic configurations; that common rating does not promise equal wheel output or acceleration. Nor does a special-edition badge buy a higher published peak in this table. Equipment, calibration, sound and the complete power curve are separate questions.
The fuel condition behind the rating
Toyota’s disclosures attach a fuel condition to the headline output: the published ratings are achieved using 93-octane premium unleaded or higher. Read that alongside the US document’s octane notation. A bare “93” copied into an international discussion can lose the distinction between AKI and RON; the digits alone do not establish equivalence.
There is also a genuine mismatch in the reviewed brochures’ fallback wording. The 2022 PDF’s disclosure 32 names 89 AKI when 93 AKI is unavailable. The 2023 disclosure 19, 2024 disclosure 1 and 2025 disclosure 1 instead name 91 with a 95-RON parenthetical. These are different statements in the documents, and this guide does not resolve them by choosing whichever number is convenient.
For interpreting the factory rating, the common 93-premium condition is the relevant point. For deciding what to put in an actual car, consult its exact-year owner’s manual. The brochure mismatch is not a recommendation to use 89 across the generation, a claim that Toyota corrected a typo, or proof of how much output a different fuel would produce. No matching lower-octane power test is established here.
Horsepower units and measurement locations
There are two separate checks before comparing a GR86 power figure: what unit is used, and where is power measured? Converting the unit answers the first question. It cannot move a measurement from the wheels to the engine.
NIST’s conversion reference lists mechanical horsepower as 745.6999 watts and metric horsepower as 735.4988 watts. Using those factors, 228 mechanical hp converts to approximately 170.0 kW or 231.2 metric horsepower, rounded to one decimal. That is arithmetic, not an extra performance upgrade or proof that a differently specified overseas car matches the US version.
| Label on a GR86 discussion or sheet | Question it answers | What still needs checking |
|---|---|---|
| hp, metric horsepower or kW | Which power unit is being reported? | The definition used by the source |
| Manufacturer engine rating | What output does the manufacturer publish? | Year, market, configuration and rating conditions |
| whp or wheel horsepower | What does this source identify as wheel output? | Test equipment, configuration and run conditions |
| Hub or axle measurement | Where does the equipment take the measurement? | Whether the comparison uses the same boundary |
SuperFlow’s dynamometer explanation describes power calculation from torque and rotational speed and distinguishes engine testing from chassis testing. “Dyno” therefore does not identify one universal measurement location. Keep the actual source’s label attached to its result.
Standards terminology also needs care. The public scope of the historical SAE J1349 edition reviewed here describes repeatable engine measurements intended to reflect typical in-service performance. J2723’s public scope distinguishes net-power certification under J1349 from gross power under J1995 and describes the certification framework.
Use those public summaries to understand the terminology. Access here is limited to the public scopes, rather than the complete licensed standards; a GR86-specific certification would require its own evidence. Keep that distinction visible when a power claim cites an SAE document as authority.
Why the torque and power peaks sit apart
The two RPM values in Toyota’s specification describe different points in the engine’s operation. Peak torque occurs at 3,700 rpm; peak power occurs at 7,000 rpm. Reading the headline as “184 lb-ft everywhere until the horsepower peak” creates a curve that the brochure never supplies.
Power depends on torque and rotational speed, as the SuperFlow explanation describes. The two maxima therefore need not occur together. For a question about low-speed grunt or mid-range shove, look at an actual curve with its source axes, units, configuration and measurement boundary intact.
The peak table supplies neither torque at intermediate speeds, accelerator response nor same-gear acceleration. A complete trace helps with the first question; a documented response or acceleration test addresses the others.
For a concrete GR86 check, mark 3,700 and 7,000 rpm on the supplied record. Read the torque at the speed you are discussing; do not pair the 184 lb-ft maximum with the 7,000-rpm power peak as though they occur together. If only the brochure rows are available, choose a comparison of published maxima. Request the complete test trace before describing a particular car’s mid-range delivery.
Two vendor baselines, kept separate
JST and TEQSPORT publish useful GR86 examples. Both sell tuning services; these are their reported results, with each setup kept attached.
JST’s GR86 results post reports an earlier February 2022 stock baseline of 213 WHP on its own dyno. The later November baseline is a different case: the post describes bolt-on modifications and reports 219.5 WHP before tuning and 231 WHP after tuning. Those later figures should not be relabeled as an untouched car’s factory output. Nor can the later session’s fuel description or parts list be assigned backward to February where the earlier information is unstated.
TEQSPORT’s account reports 216 whp and 176 wtq for its stock 2024 GR86 on 93-octane fuel. Its subsequent 223 whp tune-only and 240 whp flex-fuel-kit/E85 figures describe modified states. The selected passage leaves the dyno model, correction, gear, temperatures and full protocol unstated.
| Original account | State identified by the source | Reported wheel-power figure | Appropriate use |
|---|---|---|---|
| JST, earlier February 2022 run | Stock baseline | 213 WHP | That particular historical stock report |
| JST, November session | Bolt-on baseline; subsequently tuned | 219.5 WHP; 231 WHP | Two stated modified-session results |
| TEQSPORT, 2024 car | Stock, 93-octane fuel | 216 whp | That vendor’s stated stock case |
| TEQSPORT, subsequent states | Tune-only; flex-fuel kit/E85 | 223 whp; 240 whp | Distinct modified configurations |
The shops did not supply a shared controlled experiment. Read across a row to identify its car and setup; ranking the shops by the largest number would discard those differences.
Before comparing dyno sheets, match the setup
Read a dyno sheet in three passes: measurement location, correction setting, then test controls.
First, identify the test boundary. Mainline’s hub-versus-roller explanation distinguishes measurements at the axles from those at rollers. Wheel and tyre involvement changes that boundary, and the manufacturer cautions against simply assuming vehicle drivetrain inertia. Its examples are not correction factors for this Toyota.
Then identify the correction setting. Dynojet’s software documentation explains atmospheric correction using temperature, pressure and humidity. Record that atmospheric correction method alongside the result; it is separate from a drivetrain-loss estimate.
Finally, check the recorded comparison controls. SuperFlow’s testing guidance calls attention to operating temperatures, test acceleration rates and load-cell calibration. Use those three items to check whether the runs followed comparable protocols.
| Record to request | GR86-specific reason to retain it |
|---|---|
| Model year, transmission and test gear | The brochure and test configurations need to match the question |
| Hardware, software and fuel for each run | The vendor examples contain different stock and modified states |
| Dyno type and measurement location | A wheel or axle result needs its original boundary |
| Correction setting and reported conditions | Atmospheric adjustment needs an identified method |
| Temperature, acceleration-rate and calibration information | Missing comparison controls limit conclusions about a change |
The 2024 US brochure makes the gearbox point concrete: fifth gear is listed as 1.000 for the manual, while fourth is 1.000 for the automatic. That does not reveal which gear either vendor used, prescribe a dyno operating procedure, or make a shared gear number a fair comparison.
Missing setup information leaves an attributed report rather than a controlled comparison. More digits cannot repair an undocumented test.
Myth or Real?
Claim
Social paraphrase: The factory engine rating may be conservative when estimated from wheel results and an assumed drivetrain loss.
Verdict
UNPROVEN
Facts
A wheel dynamometer reports wheel output. A generic loss assumption cannot establish the engine’s measured crankshaft output.
The forum author explicitly used an assumption and a mixed-model user compilation. This check leaves actual factory underrating unresolved; it does not claim that the engine rating is exact or that every estimate is useless.
The discussion is a reason to investigate, not an engine-output measurement. The technical evidence supports keeping measurement locations and test protocols distinct. Its general method cannot establish the actual crankshaft output of a particular car. The older vendor document is used only for those limited method points; its criticism of competing dyno brands is not adopted.
Takeaway
Keep engine ratings and wheel measurements separate; ask for the test method before comparing.
Sources
Claim discussion: r/ft86: Updated My 2022 BRZ/GR86 Dyno List.
Evidence: SuperFlow: Why the Horsepower Numbers Will Never Match; SuperFlow: Dynamometer Testing Oversights.
Checked 2026-10-27. Scope: U.S. Toyota GR86 horsepower guide; a February 2022 mixed BRZ/GR86 forum inference. No new engine test, individual-car measurement, tuning recommendation or current popularity claim.
Manual, automatic and special-edition changes
The GR86 records offer three different comparisons: listed engine ratings, a declared control revision and acceleration tests.
Toyota’s indexed 2025 Hakone release describes revised throttle mapping and engine torque control. The 2025 brochure retains the previously listed peak output. Read this as a declared control change: quantifying its effect would require a before-and-after curve, wheel measurement or response test, none of which is supplied here.
Separate road tests reinforce the need to keep the question straight. Car and Driver’s 2022 manual Premium test and 2022 automatic Premium test report the same manufacturer power and torque specification while recording different acceleration times. These are separate test cars and methods, not a gearbox-only experiment.
MotorWeek’s 2024 TRUENO manual test likewise reports the published rating alongside its own 5.9-second 0–60 mph result. Keep MotorWeek’s result within its own test conditions; its rollout and procedures are not established as identical to the other publication’s.
Choose the comparison that answers the actual claim:
| Comparison | What this GR86 evidence supports | Decision it cannot settle |
|---|---|---|
| Base versus Premium or a listed special edition, within 2022–2025 US brochures | The same published peak rating for the listed grades | Which equipment package suits a buyer, or whether its full power curve differs |
| Six-speed manual versus six-speed automatic | The same published engine rating; separate road tests describe their particular cars | A wheel-output ranking or a gearbox-only explanation of acceleration |
| Earlier specification versus the 2025 control revision | A documented control change alongside an unchanged published peak | The size of a response or wheel-power change without a matched test |
| One stock vendor baseline versus another | Two attributed observations with the fuel and setup limits above | Which car makes more engine power, or what a modification would add |
A special-edition seller’s higher-horsepower claim can be checked against the brochure row. A transmission or control-revision claim needs the corresponding test. First-generation 86 and BRZ alternatives need their own exact-car records; a purchase ranking also needs the buyer’s requirements.
What the power number cannot tell you
The spec sheet cannot decide whether the GR86 supplies enough punch for your taste or fits your everyday life. Owner comments can illuminate those preferences, provided they remain individual accounts rather than substitutes for measurement.
On Cars.com’s 2023 GR86 review page, reviewer Jack describes a Premium manual with the GR Exhaust Package and about 2,000 miles. His account combines everyday fun with a wish for more from the motor and a complaint about the small trunk opening. That short-tenure self-report puts enjoyment, desired performance and cargo access in the same ownership decision. It does not measure output or establish how every owner will feel.
On the same Cars.com page, Rob Ruzicka’s September 2023 account describes moving from a 2017 GT86 to a 2023 GR86 with a six-speed manual. He considers the newer car’s power sufficient for the corners he enjoys, describes the suspension as stiff and says the seat and legroom suit his six-foot frame. His reported 130,000 miles and trouble-free history belong to the previous 2017 car, not the 2023 GR86.
Jack and Rob thus bring different expectations to the same generation: one wants more from the motor while enjoying daily use; the other finds the shove adequate for his corner-focused driving. Their self-reported cars, roads and preferences are not a matched test. Use that contrast to define what you want to assess on your own drive, rather than treating either opinion as a horsepower result or a reliability forecast.
Make the personal checks concrete: assess the car’s response and everyday environment, then try your actual luggage in the trunk.
Power figures alone do not set a fair purchase price for an individual used GR86. Compare the actual build, condition, service and title records, independent inspection and complete written offer; the retained six 2023 Premium manual asking records do not value every model year or trim.
How to assess a GR86 power claim
Use this four-step check to turn a power claim into a statement another reader can verify. A shortcut is useful only when the source supports it.
- Classify the claim. Is it a quotation of Toyota’s rating, a unit conversion, one measured run, a comparison between runs or a claim about the engine’s true output? Each requires a different kind of support.
- Locate the original evidence. Follow a repost to the brochure, shop account or test publication. Several articles repeating one measurement still describe one measurement.
- Match what is being compared. Use the unit, measurement location and configuration checks above. If the claimed conclusion depends on an unknown item, identify that gap instead of supplying an assumption.
- State only the supported result. An attributed shop report can remain useful even when it cannot establish a gain or explain another car’s result. Preserve that smaller conclusion.
End with one of three decisions:
| Evidence available | Appropriate next action |
|---|---|
| The question and documented setup match | Assess the comparison within the stated method and its limits |
| An original result exists, but the comparison controls are incomplete | Report the attributed observation and keep the comparison open |
| The original source, configuration or measurement method cannot be established | Stop the power conclusion and request the missing record |
Sources and method
Research checked on October 25–26, 2026 uses the original US brochures as the authority for the year-and-grade rating table. The relevant specification and disclosure pages were read directly from the PDFs. Their historical model years remain part of every claim; the research date does not make them specifications for a newer car.
Additional manufacturer context comes from Toyota’s 2022 pricing and technical release, second-generation debut, 2023 special-edition release and 2024 TRUENO release, alongside the 2025 release linked earlier. These press-release selections were available as indexed excerpts; failed direct page requests are not represented as complete article access. The original brochure tables carry the specification comparison.
JST and TEQSPORT provide the two separately attributed vendor accounts. Their stated configurations and missing protocol information remain attached to the results. Technical explanations from NIST and the dynamometer manufacturers support unit and method distinctions; they are not additional GR86 tests. The SAE references are public scope summaries, with edition limits, rather than complete standards or vehicle certificates.
The road-test passages are preserved period reports. The owner comments are selected public self-reports, with no representative-sample claim. Historical asking-price research supports only the purchase-price boundary stated above. No original date has been renewed into a claim of current vehicle availability.
CarMaxx did not drive or dyno-test a GR86 for this guide. The analysis compares published evidence and explains what each source can establish. No tuning product, affiliate purchase or inferred factory-power correction is recommended.
