Audi 8R SQ5 3.0T (2014⁠-⁠2017 United States) Inspection Guide

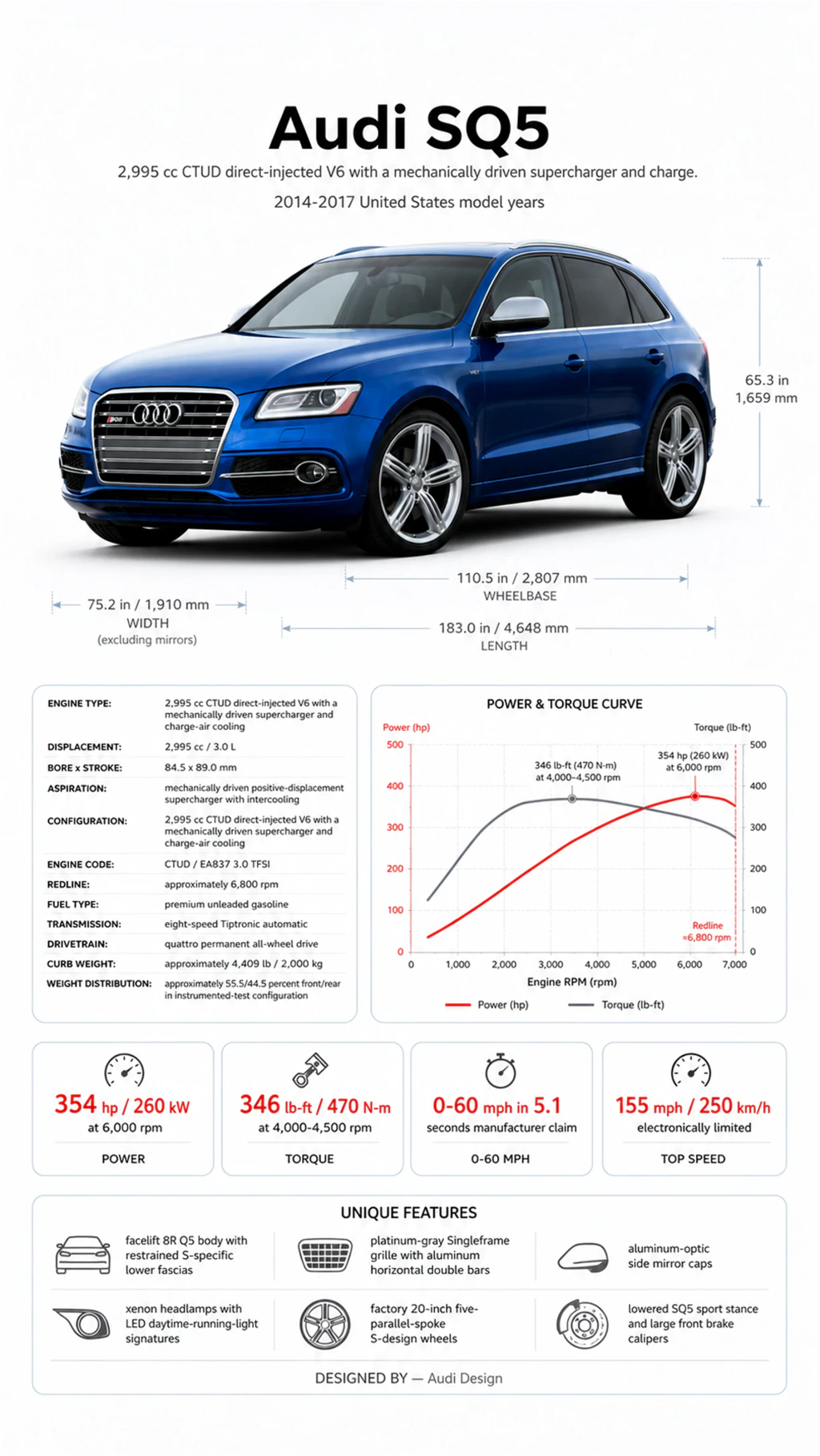

Vehicle technical infographic

Quick Answer

The 2014⁠-⁠2017 Audi SQ5 is a good used performance crossover when it has a real service file, a clean diagnostic scan, and no evidence that an ambitious tune was used as a shortcut around maintenance. Its best feature is the CTUD 3.0-liter supercharged V6: Audi rated it at 354 hp and 346 lb-ft, then paired it with an eight-speed Tiptronic and permanent quattro all-wheel drive. The result still feels quick, compact, and unusually coherent for an SUV that is now roughly a decade old.

Buy on condition, not on trim badges. A sorted 80,000-mile example with cooling-system work, healthy control arms, matched tires, and invoices is a safer choice than a lower-mile truck with mystery software and a coolant smell. Current evidence checked in August 2026 puts ordinary driver-quality cars broadly in the low-to-high teens. Six recent exact-vehicle auction results ran from $12,500 for a 122,700-mile 2015 to $32,000 for a 10,000-mile 2016. That spread is a condition map, not a single price guide.

The main inspection targets are the water pump, thermostat, PCV system beneath the supercharger, cold-start chain behavior, secondary-air faults, front suspension wear, brakes, tires, panoramic roof drains, and every cabin electronic. Verify NHTSA campaign 15V452 by VIN on affected early cars. If those checks are clean, the 8R SQ5 remains one of the more appealing ways to get supercharged punch, useful cargo space, and all-weather pace without moving into the larger or more digital SUVs that followed.

Identity And Scope

This guide covers only the United States-market first-generation SQ5 sold for model years 2014 through 2017. The chassis is Typ 8R, often described as the B8.5-era Q5 platform. Under the hood is Audi engine code CTUD, a 2,995 cc direct-injected V6 with a mechanically driven supercharger. U.S. cars use an eight-speed Tiptronic automatic and quattro. Audi service literature identifies CTUD as the 260 kW, or 354 hp, SQ5 application; the lower-output Q5 3.0T uses a different code and calibration.

That boundary matters because the name is easy to muddle. European first-generation coverage often centers on the SQ5 TDI diesel, which was not the U.S. powertrain. The redesigned 2018 SQ5 belongs to the FY/B9 generation and uses a turbocharged EA839 V6. Both engines may appear in listings as “3.0T,” but their hardware, response, service questions, and visual identity are different. A 2017 title does not automatically mean the newer body: the final American 8R cars were still the supercharged version.

Visually, the correct vehicle keeps the facelift 8R proportions, platinum-gray Singleframe grille with aluminum double bars, aluminum-look mirror caps, restrained S fascias, roof rails, large brakes, and four round exhaust outlets. It should not have the sharper FY/B9 grille, its more angular lamp graphics, or the later hidden-tailpipe treatment. Confirm the VIN, build label, engine code, original window sticker, and option codes before paying a premium for a claimed final-year, Prestige, Black Optic, or special-spec example. The right identity check prevents the entire buying decision from starting with somebody else’s description.

Powertrain

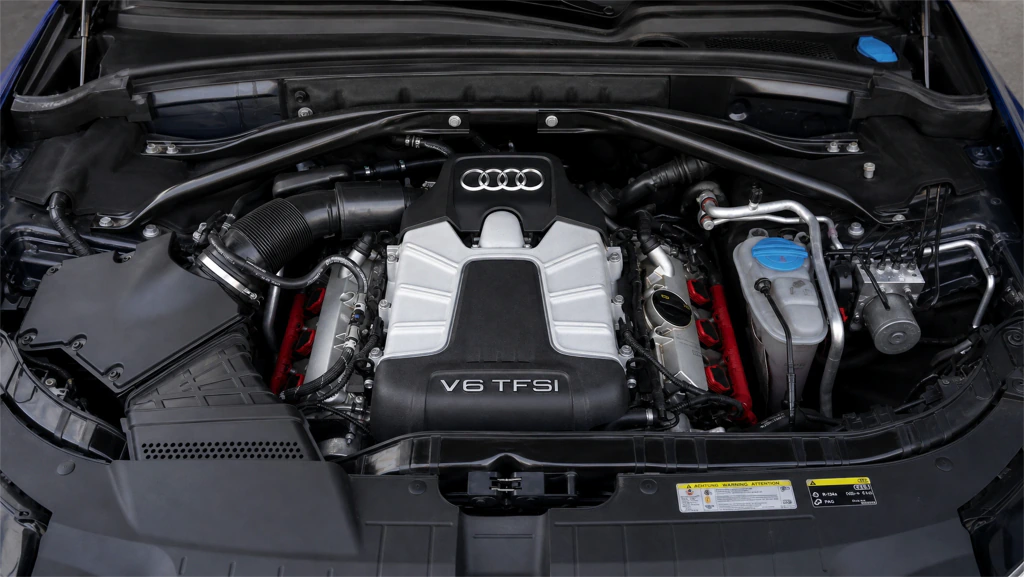

The CTUD engine is why this SQ5 has aged well. Its positive-displacement supercharger delivers response without waiting for exhaust flow, so the 346 lb-ft torque peak arrives with a clean, linear shove. Audi claimed 0⁠-⁠60 mph in 5.1 seconds and electronically limited top speed to 155 mph. Instrumented tests found stronger acceleration in favorable conditions, but the factory claim is the sensible comparison point. The eight-speed Tiptronic complements the engine better than a nervous dual-clutch would in a family crossover: it is smooth in traffic, decisive in Dynamic mode, and relaxed on the highway.

The engineering is robust, not maintenance-free. The water pump, thermostat, and crankcase breather sit in a service story owners know well. Access to the PCV hardware requires removing the supercharger, which is why good specialists often discuss related cooling work, intake cleaning, belts, and seals while the top of the engine is already open. An invoice should show what was replaced, which parts were used, and whether the cooling system was properly filled and tested. A seller saying “the common stuff was done” is not documentation.

Listen from a genuinely cold start, then repeat the check after the engine is fully warm. A brief start-up sound is different from persistent chain rattle, unstable idle, misfires, or a mechanical knock. Scan for stored and pending faults before clearing anything. Secondary-air codes, mixture faults, supercharger-bypass issues, cooling-system plausibility errors, or recurring misfires require diagnosis, not optimistic parts swapping.

Fuel cost belongs in the decision too. EPA data rates the 2014 at 16 city, 23 highway, and 19 combined mpg; 2015⁠-⁠2017 cars show 17/24/19. Premium gasoline is required. The supercharged V6 can be a lively daily companion, but no buyer should pretend it has four-cylinder running costs.

Driving Character

An 8R SQ5 feels smaller than its 4,409-pound published curb weight suggests. The body is about 183 inches long on a 110.5-inch wheelbase, and Audi’s sport suspension keeps it planted in fast sweepers. The steering is accurate rather than chatty, while quattro gives the driver confidence to use the power on wet or cold roads. This is not a tall sports sedan, but it is more disciplined than a regular Q5 and less floaty than many period luxury crossovers.

Wheel choice changes the experience. Factory 20-inch wheels use 255/45 tires and leave a little more compliance. Optional 21s sharpen appearance and response but add tire cost and make broken pavement more obvious. A rough ride can be normal specification, worn dampers, tired bushings, excessive pressure, cheap tires, or lowering hardware; do not let a five-minute test drive decide which explanation is true. Check the tire label, inspect all four sidewalls and date codes, then compare ride height corner to corner.

Use every Drive Select mode. The transmission should shift cleanly at light throttle, respond quickly to a manual request, and pull hard without flare or hesitation. Full-lock parking maneuvers should not produce binding, clunks, or hopping. Under braking, the wheel should remain calm and the pedal should feel consistent. On a straight road, the SQ5 should track without a steering correction or vibration through the seat.

The appeal is its bandwidth. It can carry people and luggage quietly, then cover a back road with real pace. Buyers expecting sports-car feedback may call it muted; people wanting a fast, understated all-weather tool usually understand the fit. Drive the actual vehicle long enough to separate factory firmness from deferred chassis work.

Interior And Equipment

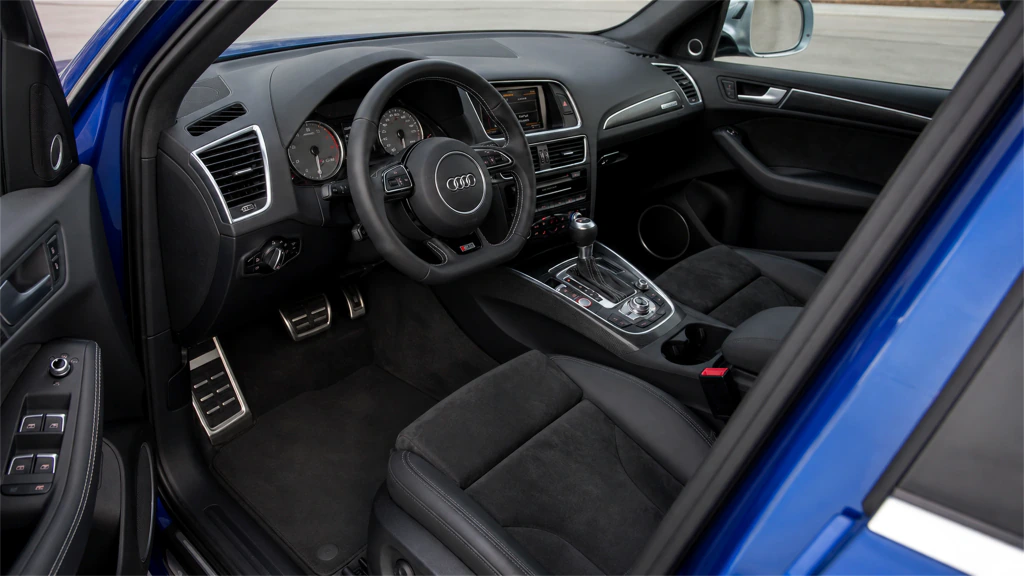

The cabin is old-school Audi in a useful way. Physical climate controls, a conventional gauge cluster, a fixed upper-dash MMI screen, and a rotary controller around the shifter are easier to operate by feel than a modern touchscreen-only layout. SQ5 equipment includes a flat-bottom steering wheel, paddle shifters, aluminum pedals, sport seats, gray-faced instruments, and S-specific trim. Rear seating works for adults, and published cargo capacity runs from roughly 29.1 cubic feet behind the second row to 57.3 cubic feet with it folded.

Condition matters because cosmetic and electronic repairs can turn a bargain into an annoying project. Test every seat motor, heater, ventilation function where fitted, window, mirror, lock, key, sunshade, tailgate switch, parking sensor, camera, audio channel, Bluetooth connection, navigation control, and climate outlet. Let the MMI run through a full drive rather than checking it for 30 seconds. Pixel problems, intermittent audio, sticky controls, dead amplifiers, or a camera that fails when warm deserve a price adjustment.

Inspect the panoramic roof from above and inside. It should open, close, tilt, and park cleanly without groaning. Look for stained pillars, a damp headliner edge, wet spare-wheel well, or musty carpet. Water tracks can indicate blocked drains, seal issues, prior glass work, or a leak that has already reached electronics. Dryness on inspection day is not proof if the car was recently detailed.

Leather and Alcantara were standard themes; Fine Nappa, Carbon Atlas, Bang & Olufsen audio, and seat ventilation appear on better-equipped cars. Verify a claimed package against the window sticker and the physical hardware. A clean Black/Magma Red interior is desirable, but working equipment and intact trim are worth more than a dramatic color combination with a hidden repair list.

Options And Variations

American SQ5s were sold as Premium Plus and Prestige. Premium Plus already carried the performance hardware that defines the model. Prestige added or bundled more technology and luxury equipment, while a Technology Package let many Premium Plus cars gain MMI Navigation Plus, Bang & Olufsen audio, parking sensors, a rear camera, side assist, and related features. Equipment shifted during the four-year run, so never reconstruct a build from one online decoder alone.

The Black Optic package changed the visual tone with gloss-black grille and window trim, matte-black roof rails, and body-color mirror housings. That last detail matters: the default aluminum-optic mirrors are part of the ordinary SQ5 identity, while factory Black Optic cars can legitimately look different. Fine Nappa leather brought richer upholstery and stitched surfaces. Carbon Atlas inlays, 21-inch wheels, red brake calipers, ventilated seats, dynamic steering, adaptive cruise on suitably equipped Prestige cars, and different paint colors can all move desirability.

Options should influence price only after they work. Dynamic steering must feel consistent and remain fault-free. Adaptive cruise needs a road test and scan. Ventilated seats should move air, not merely illuminate a button. Large wheels must be straight and free of cracks or sloppy refinishing. A branded audio system with one dead channel is not a premium feature.

Modifications are the bigger variation. Pulley upgrades, ECU and transmission software, intakes, heat exchangers, lowered springs, coilovers, sway bars, exhausts, and oversized wheels are common. Ask who installed them, when, which calibration is loaded, what fuel it expects, and whether stock parts are included. Confirm emissions legality for the buyer’s state. A thoughtful build with invoices may be excellent; a collection of logos and no records is someone else’s experiment.

Known Watchouts

Cooling and crankcase ventilation deserve the first questions. Repeated owner discussions point to water-pump, thermostat, and PCV work, often bundled because the supercharger must come off for access. Check the reservoir before start-up, inspect for dried pink residue, smell for coolant after the drive, and monitor temperature at idle. Pressure-test the system if the history is vague. A recently topped-up reservoir is not a repair.

Direct injection can allow intake deposits, while the secondary-air system can set expensive or persistent faults at higher mileage. Neither issue should be diagnosed from internet folklore. Use a proper scan, inspect misfire counters, review readiness monitors, and ask whether cleaning or secondary-air work has evidence. Persistent cold-start roughness, lean codes, oil consumption, or smoke needs a specialist’s opinion.

Brief chain sound at start-up is widely discussed across Audi’s supercharged 3.0T family, but duration and frequency matter. Record the first start after an overnight sit. Rattle that lingers, returns hot, or accompanies correlation faults is not something to wave away. The same evidence-first rule applies to transmission behavior: the eight-speed is generally well regarded, yet harsh engagement, flares, leaks, or adaptation complaints still require investigation.

The chassis carries real weight and speed. Front upper control arms, bushings, links, dampers, wheel bearings, brakes, and tires can all be due together. Uneven inner-edge wear may reveal alignment or suspension trouble that exterior photos hide. Inspect the underbody for damaged shields, corrosion, leaking mounts, and signs of careless lifting.

Finally, check the VIN for NHTSA campaign 15V452. The recall addresses possible electric power-steering assist loss in cold temperatures on certain 2014⁠-⁠2015 vehicles built from May 22, 2013 through April 14, 2015. Applicability and completion are VIN-specific; use the live federal lookup rather than assuming a model year is clear.

Market Pricing

The current market rewards proof. In a six-sale exact-vehicle audit, a 122,700-mile 2015 sold for $12,500 in August 2025, and a mostly stock 99,000-mile 2016 brought $13,500 in May 2026. A modified 91,000-mile 2017 sold for $17,700, while a one-owner 52,000-mile 2014 made $21,000. At the upper end, a 40,000-mile modified 2016 reached $23,500 and an exceptional 10,000-mile 2016 sold for $32,000. These are observations, not promises about the next car.

Kelley Blue Book offered a useful dated cross-check in late July 2026. Its national averages placed a good-condition 2014 around $11,350-$11,900 private party and $12,500-$13,100 fair purchase, depending on trim. Its 2017 resale figure was about $15,800. Geography, mileage, service, color, options, history, and retail preparation can move a real transaction well away from those estimates.

For an ordinary documented driver, roughly $13,000-$20,000 is a sensible shopping band before inspection findings. The lower half should not hide a cooling job, tires, brakes, control arms, roof leak, or unresolved codes. Spending nearer the top makes sense for cleaner mileage, desirable factory equipment, stock hardware, recent maintenance, and a history that removes uncertainty. Ultra-low-mile cars belong in a separate tier, not in the same spreadsheet as a 120,000-mile commuter.

Negotiate from the next 24 months, not from paint gloss. Price the immediate service, four correct tires, brake life, suspension play, registration risk from modifications, and any electrical defect. A cheap truck needing $7,000 of catch-up work is not the clever bargain; it is merely a repair bill with an Audi badge.

Inspection Strategy

Start before the engine runs. Ask the seller not to warm the vehicle, verify the VIN and build information, and read the service file in chronological order. Look for oil-change intervals, spark plugs, supercharger belt, accessory belt, brake fluid, drivetrain fluids, cooling parts, PCV work, suspension invoices, tires, alignments, and software documentation. Gaps are not automatic rejection, but they change the risk and the offer.

Use a repeatable inspection sequence:

1. Cold start: watch the exhaust, listen for rattle, note idle stability, and scan misfire counters before clearing any faults.
2. Engine bay: inspect coolant level, dried residue, oil seepage, belt condition, disturbed hardware, wiring, intake clamps, and signs of rushed supercharger removal.
3. Full scan: read engine, transmission, steering, ABS, parking, camera, roof, seat, climate, and infotainment modules. Check pending codes and readiness monitors.
4. Road test: use light and full throttle, manual shifts, every Drive Select mode, full-lock turns, a rough surface, steady highway speed, and several progressive stops.
5. Chassis lift: check control arms, dampers, mounts, wheel bearings, brakes, undertrays, exhaust, fluid leaks, impact marks, corrosion, and all four tire date codes.
6. Cabin and water: run the roof, tailgate, MMI, audio, camera, sensors, seats, climate, keys, windows, and mirrors; inspect carpets and the spare-wheel well.

After the drive, let the CTUD V6 idle until fully warm, then shut it down and restart it. Recheck coolant odor, leaks, fan behavior, and stored faults. A healthy car should not need explanations for warning lights, delayed engagement, vibration, or disappearing coolant.

Modified examples need an extra layer. Photograph pulley size, intake, heat exchanger, exhaust, suspension, brake parts, and emissions hardware. Identify the ECU and TCU calibration, required fuel, installer, and supporting maintenance. If the seller cannot explain the build, assume the next owner will be paying to understand it.

Best Buyer Fit

The best owner wants one vehicle to cover commuting, bad weather, road trips, family duty, and genuinely quick back-road driving. They appreciate immediate supercharger response, a physical-control cabin, useful cargo space, and styling that does not shout. They also have access to an Audi/VW specialist and enough budget to fix age-related problems before those problems cascade.

This is a weaker fit for somebody chasing maximum fuel economy, soft ride quality, the newest driver-assistance technology, or a warranty-like ownership experience. Premium fuel, large tires, strong brakes, and labor beneath the supercharger are part of the deal. Optional 21-inch wheels look excellent but can make both ride and replacement cost harder to ignore. A standard Q5 3.0T may deliver much of the straight-line enjoyment for less, while a 2018-plus SQ5 offers a newer cabin and different turbocharged character.

Enthusiasts should be honest about tuning. The CTUD platform responds well to software and pulley changes, which is precisely why many cars are modified. If that is the goal, buy the cleanest documented base and evaluate the hardware as carefully as the vehicle itself. Do not pay extra for anonymous parts or a tune the seller cannot identify.

For a reader who wants an understated, fast, practical Audi, the 8R SQ5 still has a compelling fit. It is old enough that condition dominates, yet modern enough to handle daily life without feeling like a preservation exercise. The right choice feels complete rather than merely exciting.

Buying Verdict

Buy the 2014⁠-⁠2017 SQ5 for its specific combination of supercharged response, eight-speed usability, compact dimensions, quattro traction, and a cabin that still works without a touchscreen scavenger hunt. Skip any example that cannot prove cooling-system health, clean electronics, sound suspension, legal modifications, and consistent maintenance. The badge does not cancel deferred work.

The smartest target is a mostly stock Premium Plus or Prestige with a dated file, four matching tires, smooth hot and cold behavior, and recent attention to the items its mileage actually demands. Pay more for evidence, not for hype. Black Optic, Fine Nappa, Carbon Atlas, Bang & Olufsen, or 21-inch wheels are pleasant bonuses only after the mechanical baseline is strong.

A final-year car can be desirable because it closes the supercharged 8R chapter, but 2017 is not a magic reliability shield. Conversely, an early 2014 with campaign completion, careful ownership, and documented repairs can be the right buy. Model year organizes the search; condition decides the verdict.

Budget the purchase and the first two years together. Keep enough reserve for premium tires, brakes, cooling or PCV work, suspension wear, and an electronic surprise. With that discipline, the 8R SQ5 remains a fast, planted, useful machine whose personality has survived depreciation unusually well. Without it, even a low asking price can become an expensive lesson.

Frequently Asked Questions

Is the 2014⁠-⁠2017 Audi SQ5 3.0T worth buying?

Buy the 2014⁠-⁠2017 SQ5 for its specific combination of supercharged response, eight-speed usability, compact dimensions, quattro traction, and a cabin that still works without a touchscreen scavenger hunt.

What does current market evidence say about the 2014⁠-⁠2017 Audi SQ5 3.0T?

A modified 91,000-mile 2017 sold for $17,700, while a one-owner 52,000-mile 2014 made $21,000.
